PICO-EOD-V1: EOD LASER MODULE

Disarms USBVs and IEDs safely by using laser technology

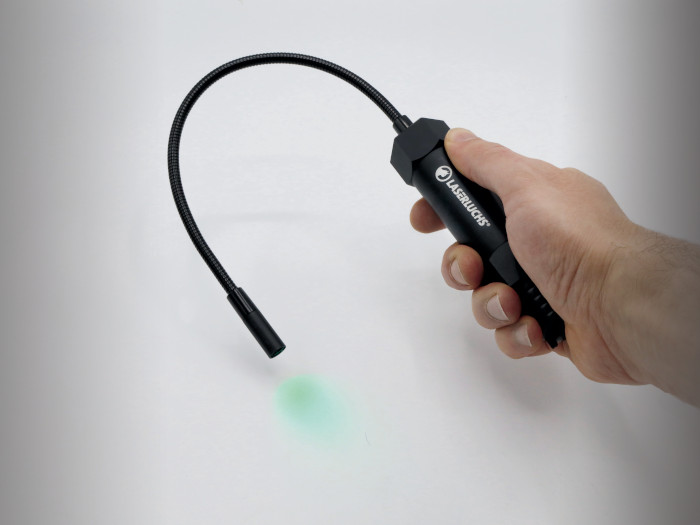

The EOD-V1 Laser (EOD = Explosive Ordnance Disposal) is a mobile tool for detecting trigger mechanisms, explosives and for bomb disposal. It enables special task forces and bomb disposal units to safely and efficiently examine and identify unknown and potentially dangerous objects. The EOD-V1 allows the unknown object to be examined from the inside, without triggering any sensor that responds to light. This is achieved by using a wavelength of 520 nm, which the human eye can perceive particularly well, but the analyzing trigger electronic of the sensor can not, thus reducing the risk of triggering light-sensitive sensors up to 10 times less. The EOD-V1 reduces the time between examination and disposal significantly due to the increased light output compared to white light.

Technical Parameters

  • Green Laser Visible direct green laser diode
  • Beam Shape Expander
  • Wavelength 520 nm
  • Laser Class 1M
  • Operating Voltage 6V DC
  • Power Supply 2x CR123A Battery
  • Dimensions 30 x 128 mm
  • Material Aluminum, black matte anodized
  • Scope of delivery Protection case and dimmer included

Details:

  • OSRAM® direct green laser diode
  • Class 1M
  • Optical output power 10 mW
  • Working distance 10 m

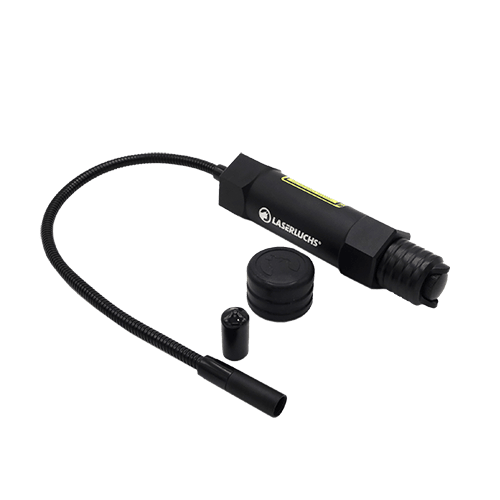

  • Diffuser filter for larger beam spread in close ranges
  • IP Protection Class 64

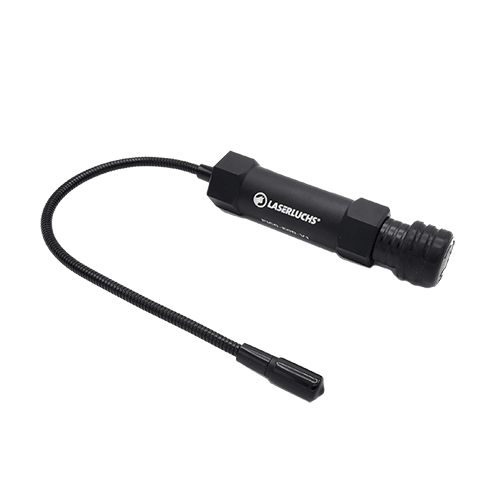

  • With gooseneck

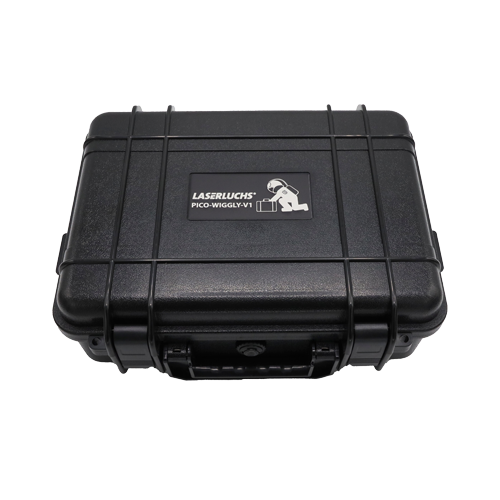

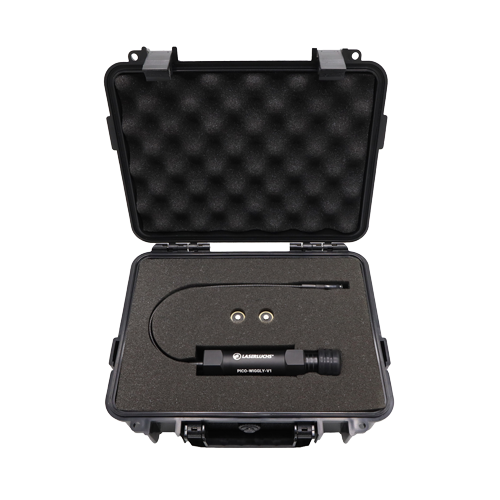

  • Incl. protection case and dimmer
