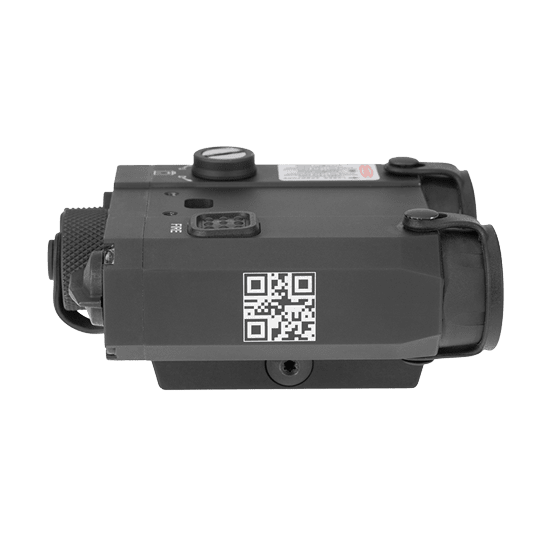

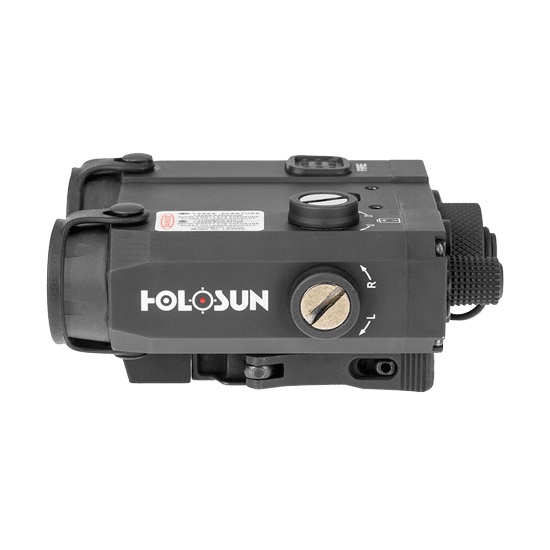

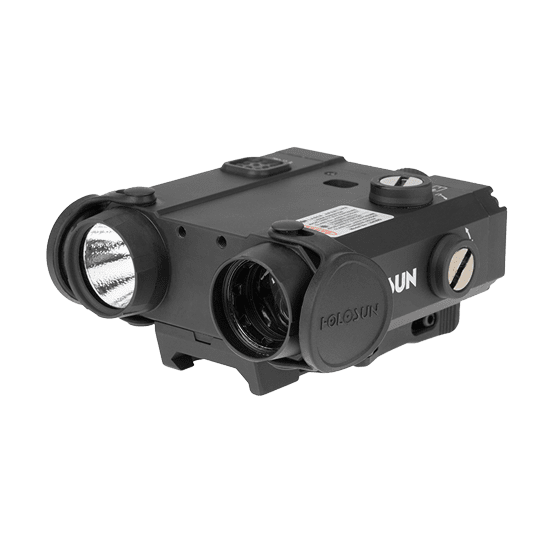

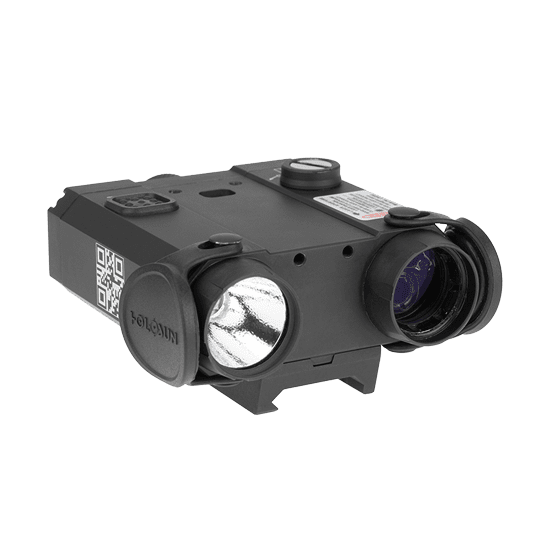

HOLOSUN Aiming Laser LS420R
LS420R is a 7075 Aluminum bodied multi- laser aiming device. Includes class IIIA visible red laser, class 2M IR laser, and IR Illuminator coaxially mounted for easy zeroing. Also features a 600 Lumen white light, IR Illuminator focus adjustment, quick release picatinny rail mount, remote pressure switch, IP67 water resistance, and is powered by two CR123 batteries for increased run-time.
![Holosun Laserluchs LS420R Laserlicht IR-Laser Lasermodul Lasermarkierer Holosun Laserluchs LS420R Laserlicht IR-Laser Lasermodul Lasermarkierer](https://www.laserluchs.de/media/32/45/1f/1643715427/LS420_1.png?1651749291)
![Holosun Laserluchs LS420R Laserlicht IR-Laser Lasermodul Lasermarkierer Holosun Laserluchs LS420R Laserlicht IR-Laser Lasermodul Lasermarkierer](https://www.laserluchs.de/media/71/39/c0/1643715427/LS420_2.png?1651749297)
![Holosun Laserluchs LS420R Laserlicht IR-Laser Lasermodul Lasermarkierer Holosun Laserluchs LS420R Laserlicht IR-Laser Lasermodul Lasermarkierer](https://www.laserluchs.de/media/88/2c/43/1643715427/LS420_3.png?1651749303)
![Holosun Laserluchs LS420R Laserlicht IR-Laser Lasermodul Lasermarkierer Holosun Laserluchs LS420R Laserlicht IR-Laser Lasermodul Lasermarkierer](https://www.laserluchs.de/media/6a/78/41/1643715427/LS420_4.png?1651749310)
Product information "HOLOSUN Aiming Laser LS420R"
![Holosun Laserluchs LS420R Illustration Laserlicht IR-Laser Lasermodul Lasermarkierer Holosun Laserluchs LS420R Illustration Laserlicht IR-Laser Lasermodul Lasermarkierer](https://www.laserluchs.de/media/3a/0f/73/1648642015/LS420R-aiming-laser-size.png?1651749534)
LS420R Red Laser & IR Laser & IR Illuminator & flash light is a multi-laser device that integrates green laser, IR laser and IR illumintor and a LED flash light. It has a mode selector to choose the different functions. The user could use same W&E adjuster to adjust the 3 laser beams at the same time. The focusing knob locates at the rear side which is convenient for user. It features high and low power laser pointers.
Warranty: 3 years
- Multi-laser device with coaxial red visible laser pointer & IR laser and IR illuminator
- LED white light flash light
- Rear side focusing knob
- Quick release mount
- Waterproofed remote cable switch
![Holosun Laserluchs Laserlicht IR-Laser Lasermodul Lasermarkierer Holosun Laserluchs Laserlicht IR-Laser Lasermodul Lasermarkierer](https://www.laserluchs.de/media/72/88/9b/1648710938/bg-image-holosun-aiming-tech-features-invers.jpg?1651748740)
Tech & Features
- Dual Lasers & Dual Illuminators
- High / Low Brightness Setting
- Remote Cable Switch
- Quick Release Mount
- IP67 Waterproof
Main Data
- Product Nr. 78003149
- Laser & Illuminator Type Dualer Laser & Dualer Illuminator
Technical Parameters
- Operating Temperature -40℃~51℃
- Storage Temperature -40℃~65℃
Optical Parameters
- Output power LED flashlight 600 Lumens
- Optical Power 0.7 mW
- Laser class laser pointer red 3R
- Laser class IR laser / illuminator 2M
- Wavelength laser pointer red 635 nm
- Wavelength IR Laser 830 nm
Electrical Parameters
- Operating Voltage 3 V DC
- Battery CR123A
Mechanical Parameters

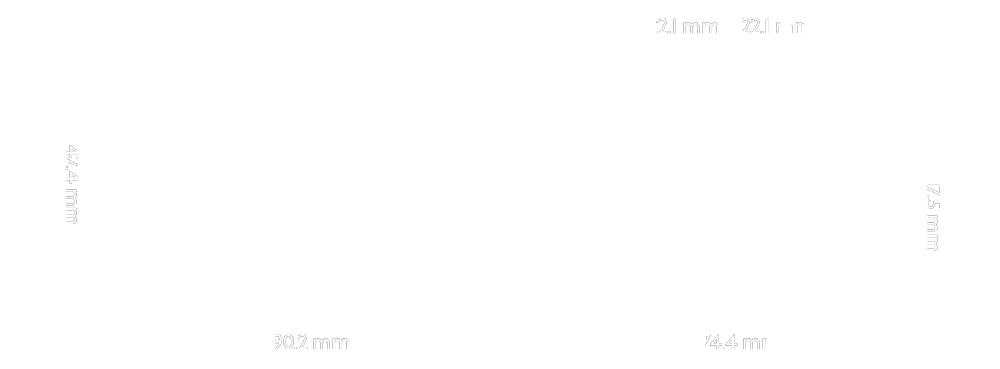

- Size 74x91x41 mm
- Weight 300g
- Material 7075 T6 Aluminium
- Housing Color black
- Protection Class IP67
