HOLOSUN IRIS-1
Laser Technology for Professionals

Important Notice for Orders in Germany:
Please note: Before shipping, we will check your BKA exemption permit for validity. Send it to us via email with your order number after placing your order. Shipping can only occur after successful verification.

Important! Licensed Item! Legal Note:
Purchase in Germany only possible with a BKA exemption permit. The purchase, possession, assembly, and use of this device are subject to legal regulations and rules in many European countries. You can only acquire this licensed item if you possess the appropriate acquisition authorization. It is the user's sole responsibility to inform themselves about the applicable regulations in their country before acquisition or use and to comply with them. Consult your responsible authority!

The Holosun IRIS-1-RD / IRIS-1-GR / IRIS-1-IR is a slim, single-function laser aiming device designed for users who demand maximum reliability with minimal weight. The redesigned 7075 aluminum housing achieves approximately 33% weight reduction and 20% lower profile compared to the LS117 series, making it ideal for modern rifles and compact platforms.

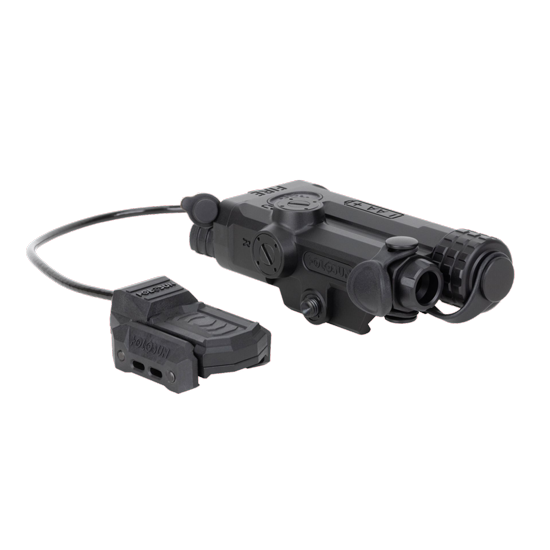

The IRIS module is operated via a centrally positioned top-fire push button with momentary and constant-on modes. Additionally, the device features a rear power/mode selector and includes a single-button pressure pad switch (Crane plug / gel button) for remote activation.

Power is supplied by one AA battery, with low battery status indicated by an LED. The device is IP68-rated for dust and water resistance and offers high resistance to shock and vibration.

The three variants differ only in the type of laser:

  • IRIS‑1‑RD: visible red laser, 635 nm, ≤ 5 mW, laser class 3R
  • IRIS‑1‑GR: visible green laser, 520 nm, ≤ 5 mW, laser class 3R
  • IRIS‑1‑IR: infrared laser, 800–880 nm, 0.7 mW, laser class 1 (for night vision devices)

Professional single-function laser aiming device optimized for ultra-compact design and maximum reliability.

Technology & Features

  • Ultra-compact housing: 7075 aluminum, approx. 33% lighter and 20% slimmer than LS117.
  • Laser: visible (red or green) or IR depending on model.
  • Rugged: IP68, operating range −40°C to 50°C, vibration resistant up to 1000 G.
  • Power: 1× AA battery, adjustment range ±50 MOA.
  • Ergonomics: top-fire button, rear mode selector, and tactical gel cable switch for ambidextrous operation.

Main data

  • Product No. IRIS-1-RD (Red Laser) 70189308
  • Product No. IRIS-1-GR (Green Laser) 70189315
  • Product No. IRIS-1-IR (Infrared Laser) 70189322
  • Product type Laser light modules
  • EAN IRIS-1-RD 4055132040093
  • EAN IRIS-1-GR 4055132040031
  • EAN IRIS-1-IR 4055132040017
  • Warranty 3 years
  • Customs tariff number 90132000000

Technical parameters

  • Operating temperature -40°C - 50 °C
  • Storage temperature -40°C - 70 °C

Optical parameters

  • Optical power 5 mW
  • Laser class 3R

Electrical parameters

  • Operating voltage 3 V DC
  • Battery AA battery, 1,5V
  • Battery count 1

Mechanical parameters

  • Size 81x50x34 mm
  • Material 7075 Aluminium
  • Housing color black
  • Weight 180 g
  • Protection class IP 68

Holosun

  • Style Aiming
  • Mounting type QD
  • Battery compartement On the side
  • Rifle optics compatible Yes
  • Surface finish MAO
  • W&E Range ± 50 MOA
  • Vibration strength 1000 G
  • Light sources Laser
  • BKA exception Yes
  • Laser illuminator wavelength IRIS‑1‑RD 635 nm
  • Laser illuminator wavelength IRIS‑1‑GR 520 nm
  • Laser illuminator wavelength IRIS‑1‑IR 800-880 nm
  • Footprint Picatinny

Delivery content

  • Remote switch (Crane-Plug)
  • AA battery
  • Adjustment tool (e.g., Allen key)
  • Lens cleaning cloth
  • Rubber cap / cover for laser opening
  • Protective case
  • User manual
  • Included warranty brochure
