HOLOSUN IRIS-3
Laser Technology for Professionals
Important Notice for Orders in Germany:
Please note: Before shipping, we will check your BKA exemption permit for validity. Send it to us via email with your order number after placing your order. Shipping can only occur after successful verification.
Important! Licensed Item! Legal Note:
Purchase in Germany only possible with a BKA exemption permit.
The purchase, possession, assembly, and use of this device are subject to legal regulations and rules in many European countries.
You can only acquire this licensed item if you possess the appropriate acquisition authorization.
It is the user's sole responsibility to inform themselves about the applicable regulations in their country before acquisition or use and to comply with them.
Consult your responsible authority!

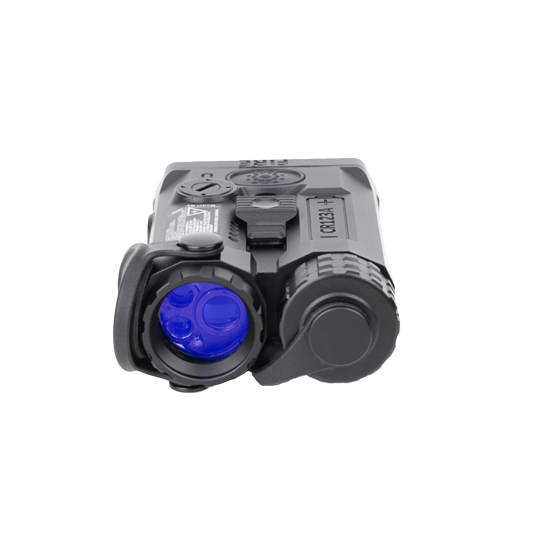

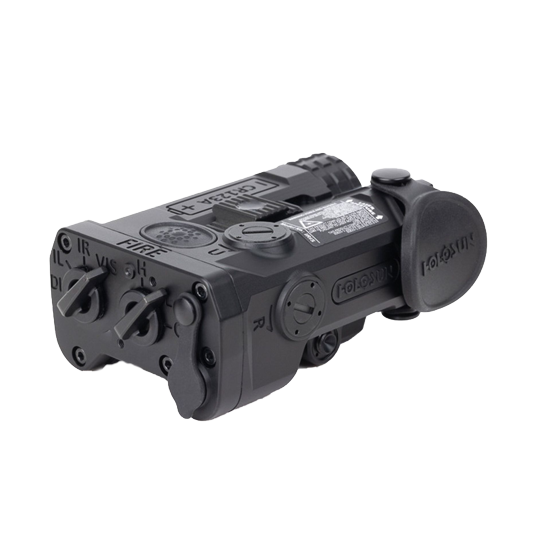

The Holosun IRIS-3-RD-IR / IRIS-3-GR-IR is an aiming laser system (visible + IR + IR illuminator) housed in an ultra-compact 7075 aluminum body—intentionally designed to be flatter and lighter than its predecessor, with a centrally positioned activation button for ambidextrous operation.
This advanced system integrates co-aligned visible and infrared (IR) aiming lasers, enabling precise zeroing in daylight using the visible laser and a seamless transition to IR functionality for nighttime operations. A powerful 60 mW VCSEL IR illuminator delivers excellent performance in low-light conditions and complete darkness when used with night vision devices..
A top-mounted beam adjustment dial allows quick adjustment of the IR illuminator from wide to narrow, even while wearing gloves, optimizing performance across different engagement distances.
The rear on/off switch and a mode selector enhance ergonomics and ease of use. The IRIS module offers multiple operating modes, each with two brightness levels. The user can select between a visible laser, an IR laser, and an IR illuminator.
Power is supplied by a CR123A battery, with decreasing capacity indicated by a red LED.
The two models differ only in the color of the visible laser:
- IRIS-3-RD-IR: visible red laser (635 nm)
- IRIS-3-GR-IR: visible green laser (520 nm)
Both variants additionally feature an IR laser (830 nm) and a 60 mW IR VCSEL illuminator for use with night vision devices.
A professional triple-function laser device offering maximum performance in an ultra-compact form factor
Technology & Features
- Triple laser system: visible laser (red or green depending on model), IR laser (830 nm), and 60 mW IR VCSEL illuminator – for visible and night vision applications.
- Rugged: IP68 protection, operating range −40 °C to 50 °C, shock resistant up to 1000 G.
- Operation: CR123A industrial lithium battery, 3 V 1400 mAh, adjustment range ± 50 MOA.

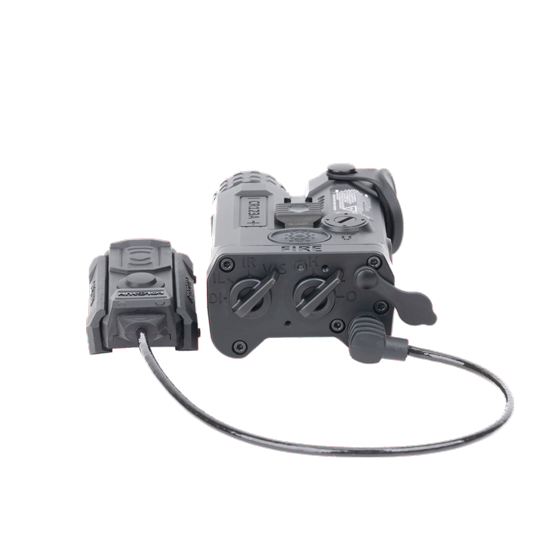

- Ergonomics: Top-mounted dual activation button (momentary & constant ON), rear mode selector switch, and tactical gel cable switch (included) allow comfortable operation for both right- and left-handed users..
Main data
- Product No. IRIS-3-RD-IR (Red Laser) 70184426
- Product No. IRIS-3-GR-IR (Green Laser) 70184440
- Product type Laser light modules
- EAN IRIS-3-RD-IR 4055132039455
- EAN IRIS-3-GR-IR 4055132037741
- Warranty 3 years
- Customs tariff number 90132000000
Technical parameters
- Operating temperature -40°C - 50 °C
- Storage temperature -40°C - 70 °C
Optical parameters
- Optical power 0.7 mW
- Laser class 3R
Electrical parameters
- Operating voltage 3 V DC
- Battery CR123A Industrial Lithium Battery, 3V 1400mAh
- Battery count 1
Mechanical parameters
- Size 81x50x34 mm
- Material 7075 Aluminium
- Housing color black
- Weight 180 g
- Protection class IP 68
Holosun
- Style Aiming
- Mounting type QD
- Battery compartement On the side
- Rifle optics compatible Yes
- Surface finish MAO
- W&E Range ± 50 MOA
- Vibration strength 1000 G
- Flip cap type Yes
- Light sources Laser
- BKA exception Yes
- Laser illuminator wavelength IRIS-3-RD-IR 635 nm
- Laser illuminator wavelength IRIS‑3‑GR-IR 520 nm
- IR-Laser wavelength 830 nm
